PILOT PMAC211 Modbus 12 channel Multi Channel Energy Meter

FOB Reference Price:Get Latest Price
  • >=1 Units
    $160.00
Lead Time:
Quantity(Units) 1 - 200 >200
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
PILOT
Model Number:
PMAC211
Display Type:
Digital Only
Phase:
4x3 phase or 12 phase
Measuring Energy Range:
0~ 99,999,999.9 kWh
Accuracy Class:
0.5%
Output Voltage:
220/380V
Operating Temperature:
-10℃~ +55 ℃
Dimensions:
94*75*62mm
Current:
PILOT PMAC211 Modbus 12 channel Multi Channel Energy Meter
Voltage:
220/380V
Frequency:
45~65Hz
No. of Channel:
Max. 12 Channel
Connection mode:
3 phase 4 wires
Rate Current Input:
100mA & 33.3mA (optional )
Communication:
RS485, Modbus-RTU
Baud rate:
4800, 9600 bps
Storage temperature::
-40℃~ +70 ℃
Humidity:
5%~95% non-condensing
Supply Ability
Supply Ability:
3000 Unit/Units per Month
Packaging & Delivery
Packaging Details
2pcs per one small carton
Port
Guangdong Zhuhai
Lead Time :
Quantity(Units) 1 - 200 >200
Est. Time(days) 15 To be negotiated

PILOT PMAC211 Modbus 12 channel Multi Channel Energy Meter





Application

  • Sub Metering In Commercial Building
  • Branch Circuit Monitoring
  • Utility Application









Feature

  • Suit for 3 phase 4 wire connection mode
  • Used for 4x3 phase or 12x1 phase circuit AC measuring
  • LCD display U, I, P, Q, S, PF, F, kWh, kvarh
  • Over & Under limit alarm, up to 500 alarm records
  • Data logging every 15 minutes
  • Max. measure current up to 600A, each channel can set different current
  • 33.3mA & 100mA rated current input (optional)
  • LED light indicates alarm & communication status
  • Standard 35mm DIN Rail Mount



Main Function



Real-time Measurement

  • Voltage, Current, Active Power , Reactive Power, Apparent Power Power Factor,
  • Frequency, Active Energy, Reactive Energy

Data Logging Every 15 Minutes

  • Total Active Energy,  Total Active Power, Current

Over & Under Limit Alarm &  Record Function

  • Over voltage, Under voltage, Over current

Communication

  • 1 RS485 port, MODBUS-RTU protocol



Technology Specification



Connection Mode3 phase 4 wires
Rated Current Input100 mA & 33.3mA (Optional)
Rated Voltage Input3*220/380V, 45Hz ~ 65Hz
Power Supply85 ~ 265VAC, DC 100 ~ 300VDC
Power Loss≤2W
CommunicationRS485 serial, support Modbus-RTU
Baud rate: 4800, 9600 bps85 ~ 265VAC, DC 100 ~ 300V
Address: 1~247
IP IndexIP52 (front panel), IP20 (whole device)
Dimension94*75*62mm (L x W x H)
EnvironmentOperating temperature: -10℃~ +55 ℃
 Storage temperature: -40℃~ +70 ℃
 Humidity: 5%~95% non-condensingO
EMC

Electrostatic discharge immunity test                IEC 61000-4-2: 2001 Radiated immunity test                                    IEC 61000-4-3: 2002

Electrical fast transient/burst immunity test       IEC 61000-4-4: 2006

Surge immunity test (1,2/50μs~8/20μs)           IEC 61000-4-52005

Radio frequency immunity                               IEC 61000-4-6: 2006

Electromagnetic emission limit                         CISPR22: 2006 pass



ParameterAccuracyResolutionMeasuring Range
Voltage0.5%0.1V0~300VAC
Current0.5%0.1A0~600A
Active Power1.0%0.1Weach phase: 0~216kW
Reactive Power2.0%0.1vareach phase: 0~216kW
Power Factor1.0%0.001-1.000~+1.000
Power Factor0.5%0.01Hz45~65Hz
Active Energy1.0%--0~99,999,999.99kWh
Reactive Energy2.0%--0~99,999,999.99kWh

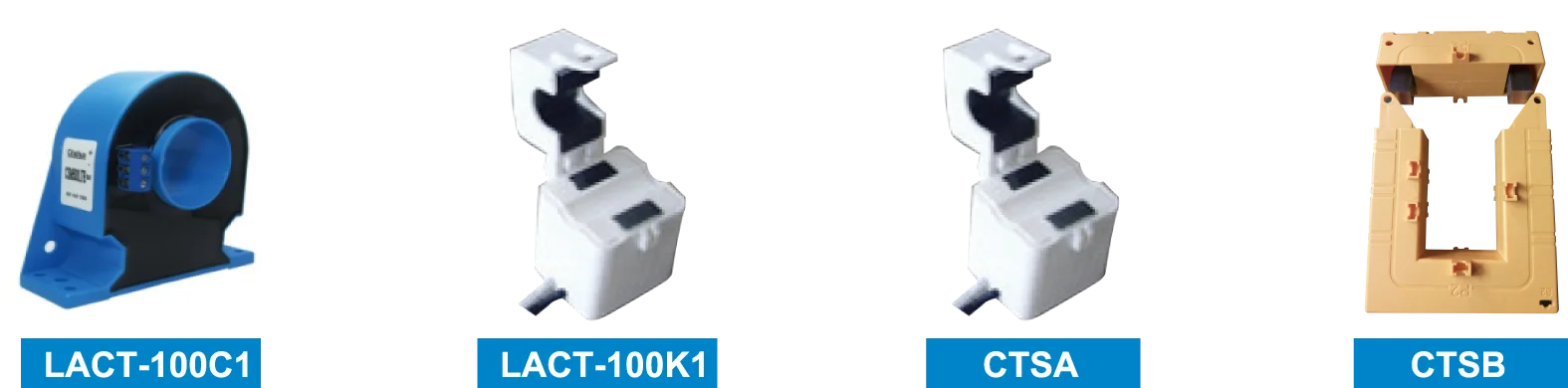

Current Transformer

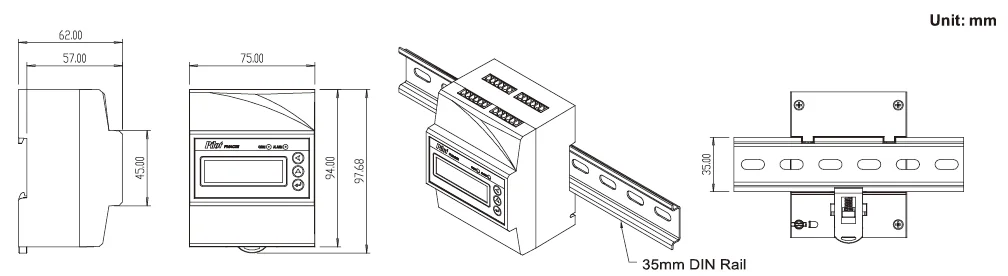

Dimension


Order Information

 Order CodeDescription
Main ModulePMAC211-4-AFor 100mA Secondary
-BFor 33.3mA Secondary
CT Accessory

CT for - A

(100mA Secondary)

LACT-100C1Solid Core CT: Φ12mm, 100A/100mA, Class 0.5
CTSA016Solid Core CT: Φ16mm, 100A/100mA, Class 0.5
CTSA024Solid Core CT: Φ24mm, 200A/100mA, Class 0.5
CTSB0203Solid Core CT: Φ20*30mm, 400A/100mA, Class 0.5
CTSB0508Solid Core CT: Φ50*80mm, 600A/100mA, Class 0.5

CT for - B

(33.3mA Secondary)

LACT-100K1Solid Core CT: Φ16.2mm, 100A/33.3mA, Class 0.5
