PILOT PMAC770 Three-phase multifunction power meter

FOB Reference Price:Get Latest Price
$0.0001 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
PILOT
Model Number:
PMAC770
Display Type:
Digital Only
Phase:
Three Phase
Measuring Energy Range:
99999999.9kWh
Accuracy Class:
0.2
Output Voltage:
220/380
Operating Temperature:
-20~+60
Dimensions:
96X96mm
Measuring Current Range:
0~50000A
Measuring Voltage Range:
0~500KV
Power Supply:
86~265VAC.99~374VDC
Power loss:
<2VA
Communication:
RS485 serial,support Modbus-RTU
Baud rate:
2400,4800,9600,19200,38400bps
IP index:
IP52(front panel) and IP30(case)
Rate current:
1A or 5A
Overload:
120%
Insulation resistance:
≥50MΩ
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
8 units/carton
Port
Zhuhai China
Lead Time :
Shipped in 3 days after payment
PMAC770 3-phase multifunction power meter

CE, KEMA, UL, CATIII





Product Description

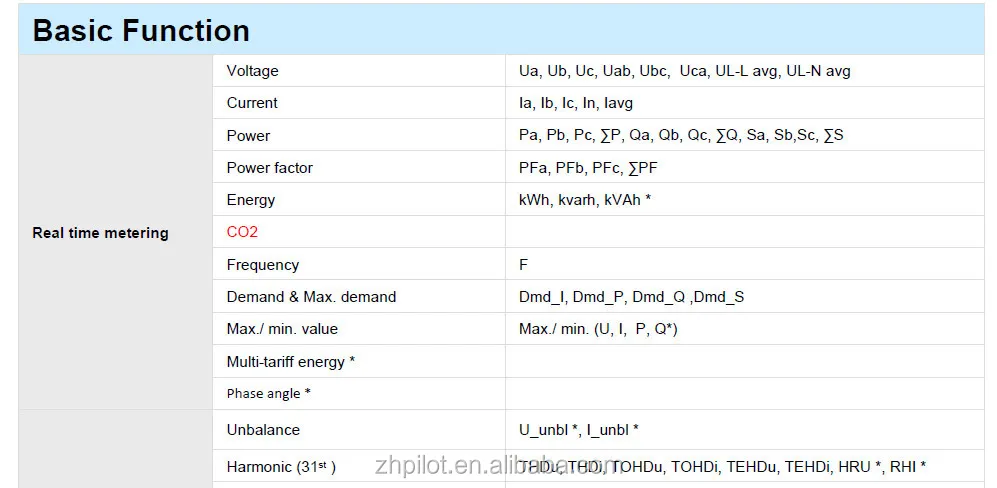

Basic Function




  Module detail









Accuracy & Measuring range



















Testing software





Testing software









Build in Web











Dimension



Dimension







Order Information
